Home - Products - Motherboards - POE Module

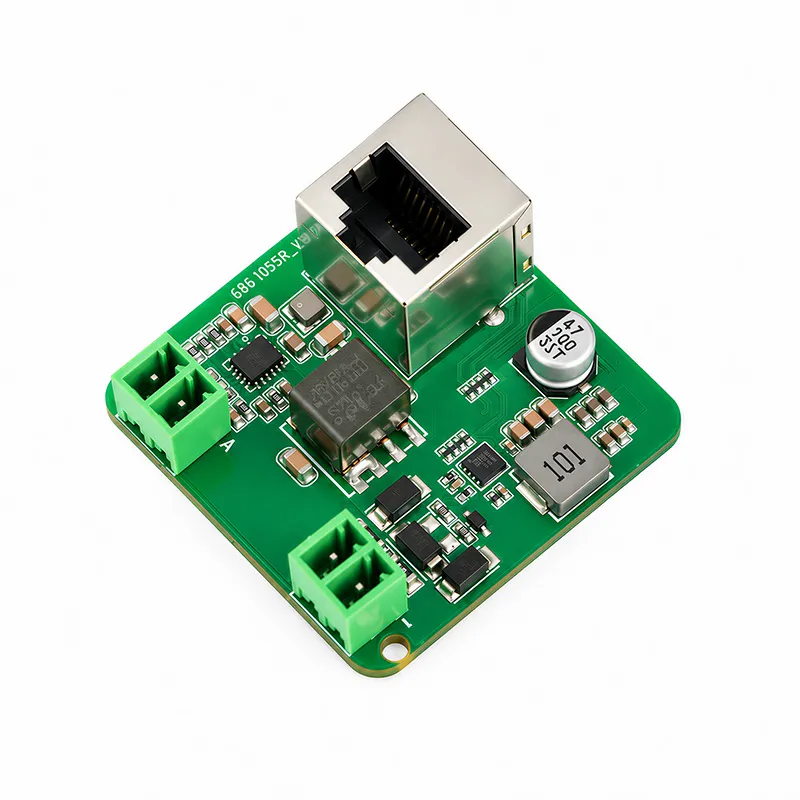

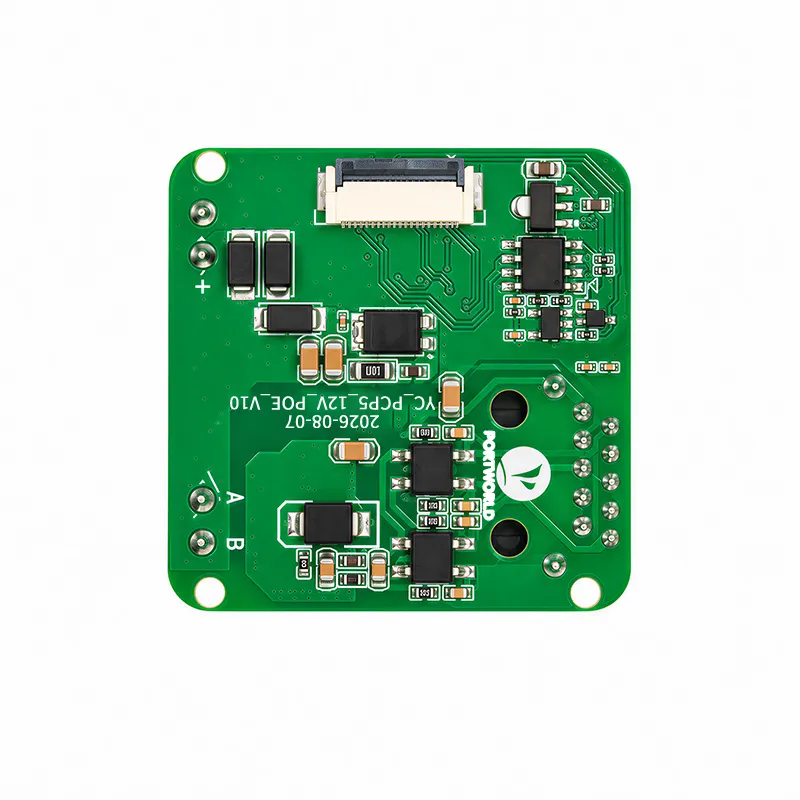

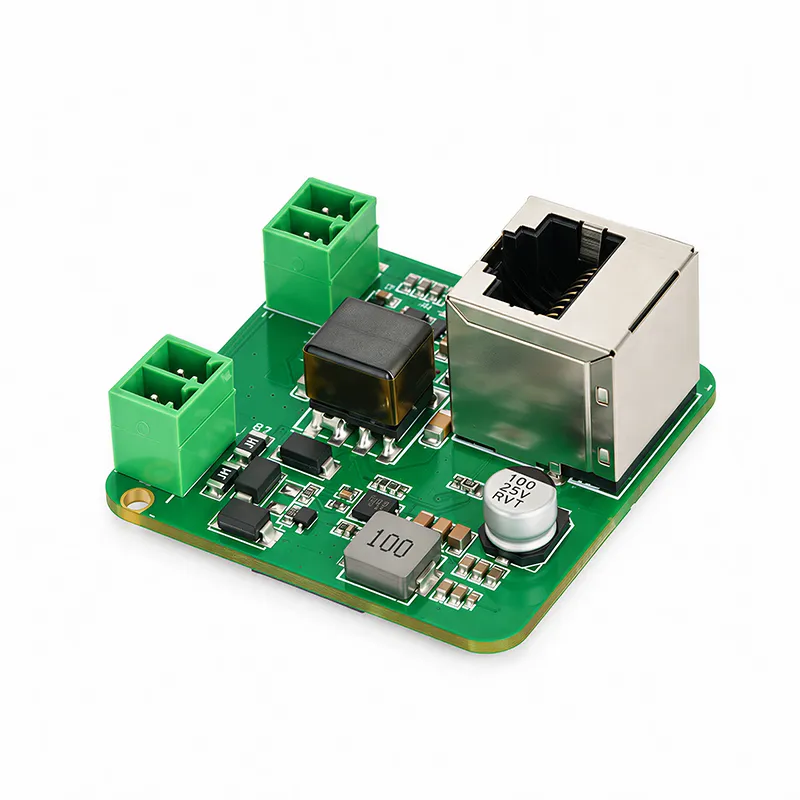

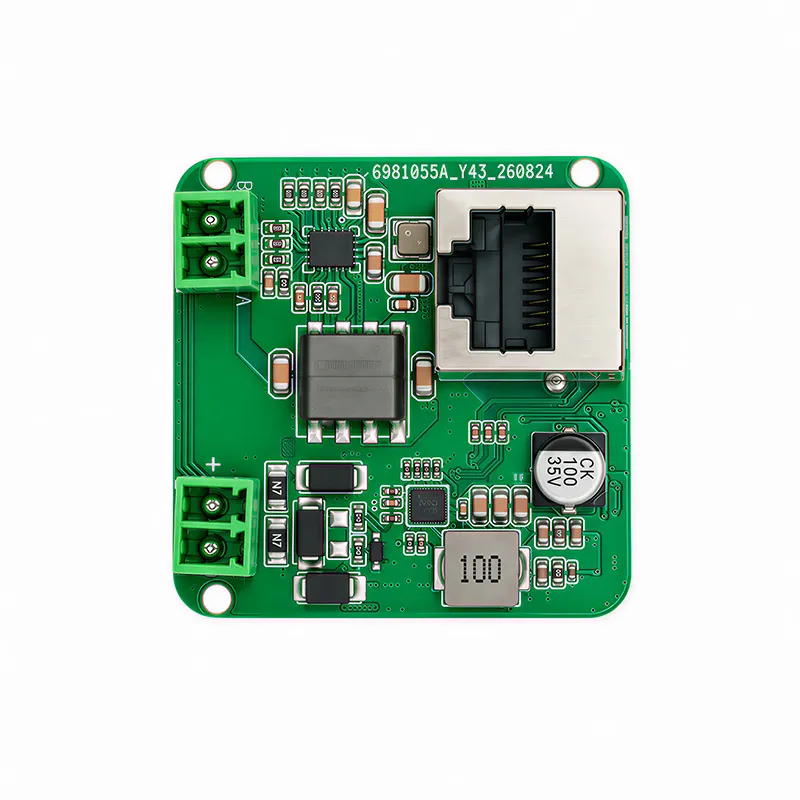

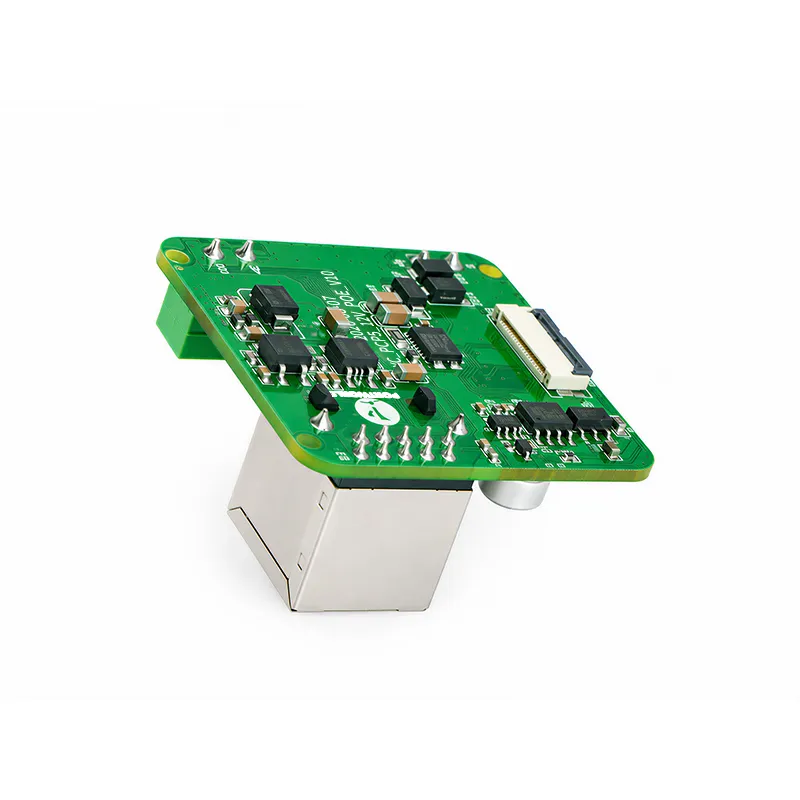

YC-PCP5 PoE Module

The YC-PCP5-12V-POE is an industrial-grade PoE expansion module designed for smart control panels, embedded motherboards, IoT gateways, and intelligent edge devices.

Key Features

Integrated PoE Power and Ethernet Communication.

Industrial RS485 Communication Interface.

20-Pin FPC High-Density Host Interface

Flexible Dual Power Supply Design

UART7 Communication Expansion

Inquiry

Overview

Key Features

Simultaneous 100M Ethernet Data & PoE Power Delivery
Onboard Noise-Resistant RS485 Industrial Bus
High-Density 20-Pin FPC (0.5 Pitch) Host Interface
DC 12V Auxiliary Input & System 5V Power Output
UART7 Serial Pass-Through Channel for IoT Control
Ultra-Compact Form Factor for Easy Enclosure Integration
Industrial-Grade Circuit Protections for 24/7 Operations
Full B2B Hardware OEM/ODM Customization Support

Standard Power over Ethernet (PoE) | Single-Cable Power & Networking

Featuring an onboard 100M RJ45 Ethernet connector with PoE decoding, the module transmits both high-speed data and stable DC power over a single Ethernet cable, significantly reducing installation complexity and eliminating bulky power adapters.

High-Density 20-Pin FPC Cable Connection | Clean Internal Wiring

Utilizing a 0.5mm pitch 20-pin FPC connector (FPC0.5*20P), the module unifies Ethernet MDI signals, UART7 serial bus, and system 5V power rails into a single flexible ribbon cable for neat internal assembly.

Onboard Industrial RS485 Transceiver

Equipped with dedicated RS485 terminal pins (A/B), the module delivers high noise immunity and long-range communication, making it easy to link with industrial sensors, smart electricity meters, PLCs, and HVAC controllers.

Dual Power Input Versatility | Flexible Field Deployment

In addition to PoE power delivery, the board includes a DC 12V terminal block. It supports seamless switching between PoE and external DC power while continuously supplying stable VCC 5V power to the main CPU system via the FPC connection.

Native UART7 Pass-Through Channel

Dedicated UART7_RX and UART7_TX pins in the 20-pin FPC interface enable high-speed command pass-through between the RS485 bus and the main processor, ensuring rapid execution of IoT protocols.

Ultra-Compact Physical Layout

With double-sided SMD components, the PoE transformer, power regulators, and I/O connectors are tightly integrated onto a compact PCB, fitting effortlessly into standard 86-type switch boxes and slim touch panels.

Industrial Circuit Protection

Engineered with solid-state capacitors (35V rated), shielded power inductors, and surge suppression components, the module guarantees unthrottled 24/7 performance in harsh electromagnetic environments.

Optimized System BOM & Accelerated Time-to-Market

By adopting a modular daughterboard design, mainboards avoid complex PoE and RS485 circuit routing, reducing PCB layers, lowering development risks, and speeding up mass production.

Wide Thermal Tolerance

Built to withstand temperature fluctuations and continuous mechanical vibrations in industrial sites, providing uninterrupted stability for edge computing nodes.

Turnkey OEM/ODM Customization Services

Backbone by Portworld's 18+ years of hardware manufacturing expertise, we offer complete customization services including FPC pinout remapping, PCB dimension adjustments, and full schematic integration support.
